Including an Applet

You can include an applet or JavaBeans component in a JSP page using the jsp:plugin element. This element generates HTML that contains the appropriate client browser dependent constructs (<object> or <embed>) that will result in the download of the Java Plug-in software (if required) and client-side component and subsequent execution of an client-side component. The syntax for the jsp:plugin element follows:

<jsp:plugin
   type="bean|applet"
   code="objectCode"
   codebase="objectCodebase"
   { align="alignment" }
   { archive="archiveList" }
   { height="height" }
   { hspace="hspace" }
   { jreversion="jreversion" }
   { name="componentName" }
   { vspace="vspace" }
   { width="width" }
   { nspluginurl="url" }
   { iepluginurl="url" } >
   { <jsp:params>
      { <jsp:param name="paramName" value= paramValue" /> }+
   </jsp:params> }
   { <jsp:fallback> arbitrary_text </jsp:fallback> }
</jsp:plugin>


The jsp:plugin tag is replaced by either an <object> or <embed> tag, as appropriate for the requesting client. The attributes of the jsp:plugin tag provide configuration data for the presentation of the element as well as the version of the plug-in required. The nspluginurl and iepluginurl attributes specify the URL where the plug-in can be downloaded.

The jsp:param elements specify parameters to the applet or JavaBeans component. The jsp:fallback element indicates the content to be used by the client browser if the plug-in cannot be started (either because <object> or <embed> is not supported by the client or due to some other problem).

If the plug-in can start but the applet or JavaBeans component cannot be found or started, a plug-in-specific message will be presented to the user, most likely a popup window reporting a ClassNotFoundException.

The Duke's Bookstore page banner.jsp that creates the banner displays a dynamic digital clock generated by DigitalClock:

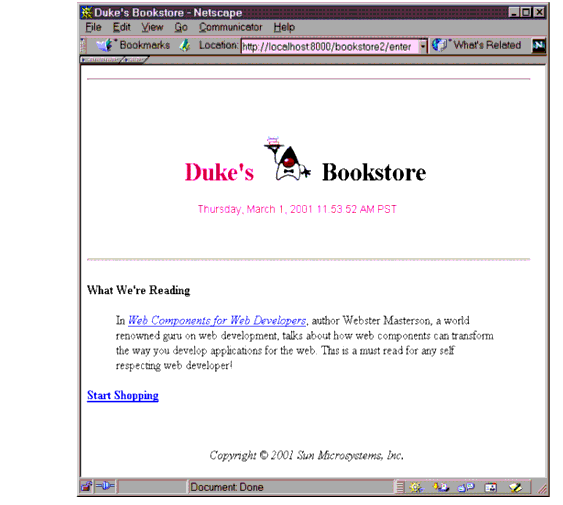

Figure 3 Duke's Bookstore with Applet

The jsp:plugin element used to download the applet follows:

<jsp:plugin
   type="applet"
   code="DigitalClock.class"
   codebase="/bookstore2"
   jreversion="1.3"
   align="center" height="25" width="300"
   nspluginurl="http://java.sun.com/products/plugin/1.3.0_01
      /plugin-install.html"
   iepluginurl="http://java.sun.com/products/plugin/1.3.0_01
      /jinstall-130_01-win32.cab#Version=1,3,0,1" >
   <jsp:params>
      <jsp:param name="language"
         value="<%=request.getLocale().getLanguage()%>" />
      <jsp:param name="country"
         value="<%=request.getLocale().getCountry()%>" />
      <jsp:param name="bgcolor" value="FFFFFF" />
      <jsp:param name="fgcolor" value="CC0066" />
   </jsp:params>
      <jsp:fallback>
      <p>Unable to start plugin.</p>
   </jsp:fallback>
</jsp:plugin>
