Below is a collection of Io images acquired by the New Horizons spacecraft as it flew by Jupiter and Io in late February and Early March 2007. For each observation, I have converted the original PDS LORRI images to 16-bit PNG images using the ESA/ESO/NASA FITS Liberator plugin for Photoshop. Those are the images linked next to "Original Image". I then rotated those images so north was up (linked next to "Rotated Image"). Next, I sharpened the rotated images using Photoshop's Unsharp Mask tool (settings used - Amount: 293%; Radius: 0.9 pixels; Threshold: 0 levels). These images are linked next to "Rotated/Sharpened Image". Finally, I cropped around Io (linked from the preview image in the left column and next to "Cropped Image") and magnified by 200% ("Magnified Image"). For many observations, I also linked to images I processed last year, including versions where I combined the LORRI data with color data from Galileo ("Colorized Image") or where I labeled various features visible in the LORRI image ("Annotated Image"). I also put together color images from any MVIC data taken during the observation.
The Celestia preview images show the surface of Io visible from New Horizons during each observation (with versions with or without a latitude and longitude grid).
For an overview of all the Io observations acquired by New Horizons, check out this animated gif I created last year.
Image Thumbnail | Observation details | Image Links |
---|---|---|

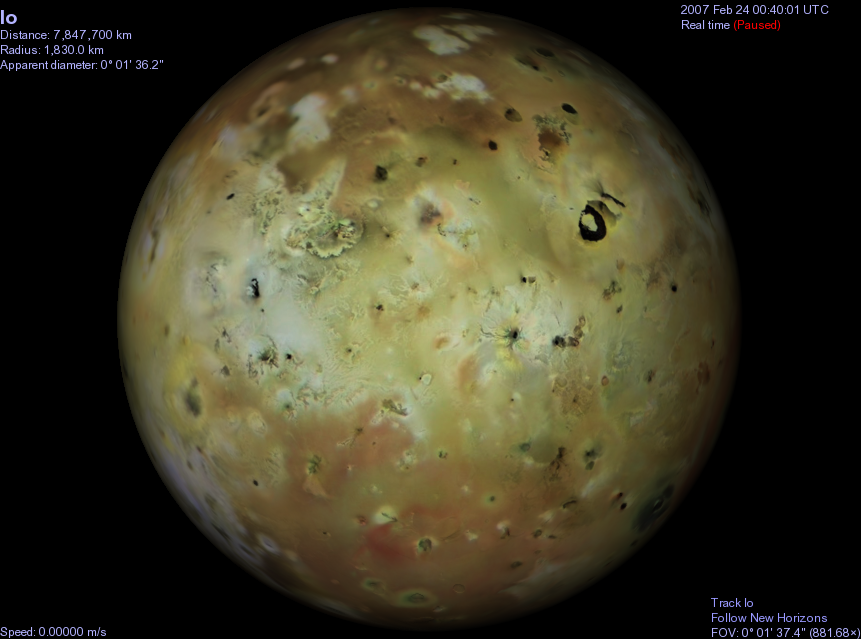

ISUNMON01 Image Time: 2007-02-24 00:40:01.366 Distance to Io's Center: 7,851,233 km Resolution: 38.86 km/pixel Center Latitude: 5.4 South Center Longitude: 341.28 West Phase Angle: 4.9 deg. |
Original Image: 3 ms Rotated Image: 3 ms Rotated/Sharpened Image: 3 ms Cropped Image: 3 ms Magnified Image: 3 ms Colorized Image: None Annotated Image: None MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |

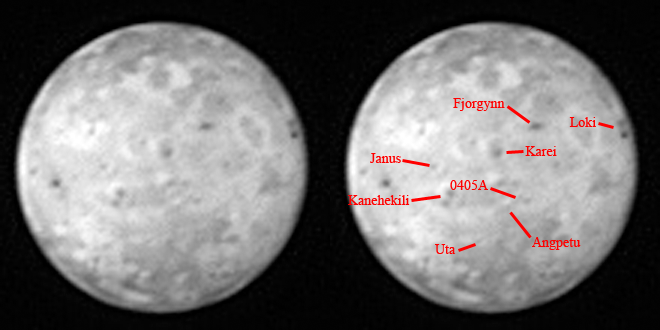

ISUNMON02 Image Time: 2007-02-24 05:00:01.366 Distance to Io's Center: 7,577,797 km Resolution: 37.51 km/pixel Center Latitude: 5.46 South Center Longitude: 15.26 West Phase Angle: 7.4 deg. |
Original Image: 3 ms Rotated Image: 3 ms Rotated/Sharpened Image: 3 ms Cropped Image: 3 ms Magnified Image: 3 ms Colorized Image: None Annotated Image: ISunMon2-0405Alabeled MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |
ISUNMON03 Image Time: 2007-02-24 13:50:01.366 Distance to Io's Center: 6,619,178 km Resolution: 32.76 km/pixel Center Latitude: 5.93 South Center Longitude: 85.47 West Phase Angle: 12 deg. |
Original Image: 3 ms Rotated Image: 3 ms Rotated/Sharpened Image: 3 ms Cropped Image: 3 ms Magnified Image: 3 ms Colorized Image: None Annotated Image: None MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |
ISUNMON05 Image Time: 2007-02-25 05:00:01.366 Distance to Io's Center: 5,279,227 km Resolution: 26.13 km/pixel Center Latitude: 6.75 South Center Longitude: 216.14 West Phase Angle: 10.2 deg. |
Original Image: 3 ms Rotated Image: 3 ms Rotated/Sharpened Image: 3 ms Cropped Image: 3 ms Magnified Image: 3 ms Colorized Image: None Annotated Image: None MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |
ISUNMON06 Image Time: 2007-02-25 08:30:01.366 Distance to Io's Center: 5,217,562 km Resolution: 25.83 km/pixel Center Latitude: 6.66 South Center Longitude: 246.24 West Phase Angle: 9.8 deg. |
Original Image: 3 ms Rotated Image: 3 ms Rotated/Sharpened Image: 3 ms Cropped Image: 3 ms Magnified Image: 3 ms Colorized Image: None Annotated Image: None MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |
ISUNMON07 Image Time: 2007-02-25 14:55:01.366 Distance to Io's Center: 5,184,855 km Resolution: 25.67 km/pixel Center Latitude: 6.4 South Center Longitude: 298.44 West Phase Angle: 11.8 deg. |
Original Image: 3 ms Rotated Image: 3 ms Rotated/Sharpened Image: 3 ms Cropped Image: 3 ms Magnified Image: 3 ms Colorized Image: 3 ms Annotated Image: None MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |
IOCC01 Image Time: 2007-02-26 04:24:01.363 Distance to Io's Center: 4,510,683 km Resolution: 22.33 km/pixel Center Latitude: 6.6 South Center Longitude: 38.35 West Phase Angle: 25.8 deg. |
Original Image: 10 ms Rotated Image: 10 ms Rotated/Sharpened Image: 10 ms Cropped Image: 10 ms Magnified Image: 10 ms Colorized Image: None Annotated Image: None MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |
ISUNMON09 Image Time: 2007-02-26 08:40:01.366 Distance to Io's Center: 4,069,070 km Resolution: 20.14 km/pixel Center Latitude: 7.06 South Center Longitude: 69.7 West Phase Angle: 30.6 deg. |
Original Image: 3 ms | 20 ms Rotated Image: 3 ms | 20 ms Rotated/Sharpened Image: 3 ms | 20 ms Cropped Image: 3 ms Magnified Image: 3 ms Colorized Image: None Annotated Image: None MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |
IHIRESIR01 Image Time: 2007-02-26 18:38:16.366 Distance to Io's Center: 3,034,610 km Resolution: 15.02 km/pixel Center Latitude: 8.61 South Center Longitude: 148.7 West Phase Angle: 36.2 deg. |
Original Image: 4 ms | 20 ms | 75 ms Rotated Image: 4 ms | 20 ms | 75 ms Rotated/Sharpened Image: 4 ms | 20 ms | 75 ms Cropped Image: 4 ms Magnified Image: 4 ms Colorized Image: 4 ms Annotated Image: None MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |
IHIRES01 Image Time: 2007-02-26 21:01:16.366 Distance to Io's Center: 2,865,360 km Resolution: 14.18 km/pixel Center Latitude: 8.9 South Center Longitude: 169.03 West Phase Angle: 36.1 deg. |
Original Image: 4 ms | 20 ms | 75 ms Rotated Image: 4 ms | 20 ms | 75 ms Rotated/Sharpened Image: 4 ms | 20 ms | 75 ms Cropped Image: 4 ms Magnified Image: 4 ms Colorized Image: 4 ms Annotated Image: Ihires1-labeled MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |
IHIRES02 Image Time: 2007-02-27 01:05:01.367 Distance to Io's Center: 2,690,504 km Resolution: 13.32 km/pixel Center Latitude: 9.07 South Center Longitude: 204 West Phase Angle: 35.7 deg. |
Original Image: 3 ms | 20 ms Rotated Image: 3 ms | 20 ms Rotated/Sharpened Image: 3 ms | 20 ms Cropped Image: 3 ms Magnified Image: 3 ms Colorized Image: 3 ms Annotated Image: Ihires2-labeled MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |

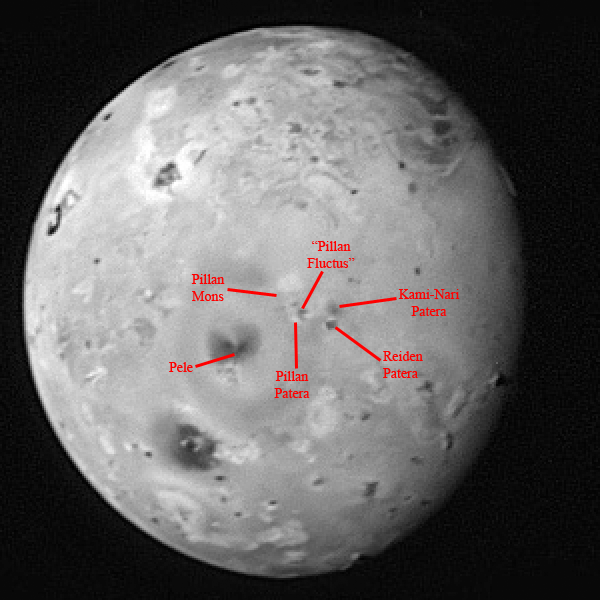

IHIRESIR02 Image Time: 2007-02-27 05:38:16.366 Distance to Io's Center: 2,647,724 km Resolution: 13.11 km/pixel Center Latitude: 8.73 South Center Longitude: 241.66 West Phase Angle: 36.5 deg. |
Original Image: 4 ms | 20 ms | 75 ms Rotated Image: 4 ms | 20 ms | 75 ms Rotated/Sharpened Image: 4 ms | 20 ms | 75 ms Cropped Image: 4 ms Magnified Image: 4 ms Colorized Image: 4 ms Annotated Image: Ihiresir2-labeled MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |
IHIRES03 Image Time: 2007-02-27 09:15:01.367 Distance to Io's Center: 2,683,954 km Resolution: 13.29 km/pixel Center Latitude: 8.22 South Center Longitude: 269.13 West Phase Angle: 39.6 deg. |
Original Image: 3 ms | 20 ms Rotated Image: 3 ms | 20 ms Rotated/Sharpened Image: 3 ms | 20 ms Cropped Image: 3 ms Magnified Image: 3 ms Colorized Image: 3 ms Annotated Image: Ihires3-labeled MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |
IECLIPSE03 Image Time: 2007-02-27 13:46:01.367 Distance to Io's Center: 2,749,820 km Resolution: 13.61 km/pixel Center Latitude: 7.54 South Center Longitude: 300.16 West Phase Angle: 46.7 deg. |
Original Image: 3 ms Rotated Image: 3 ms Rotated/Sharpened Image: 3 ms Cropped Image: 3 ms Magnified Image: 3 ms Colorized Image: 3 ms Annotated Image: None MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |
IHIRES04 Image Time: 2007-02-28 03:50:01.363 Distance to Io's Center: 2,689,828 km Resolution: 13.31 km/pixel Center Latitude: 6.07 South Center Longitude: 22.38 West Phase Angle: 83.4 deg. |
Original Image: 11 ms | 20 ms | 75 ms Rotated Image: 11 ms | 20 ms | 75 ms Rotated/Sharpened Image: 11 ms | 20 ms | 75 ms Cropped Image: 11 ms | 20 ms | 75 ms Magnified Image: 11 ms | 20 ms | 75 ms Colorized Image: 11 ms Annotated Image: None MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |
IHIRESIR03 Image Time: 2007-02-28 04:40:16.366 Distance to Io's Center: 2,670,465 km Resolution: 13.22 km/pixel Center Latitude: 6.01 South Center Longitude: 27.09 West Phase Angle: 85.7 deg. |
Original Image: 4 ms | 20 ms | 75 ms Rotated Image: 4 ms | 20 ms | 75 ms Rotated/Sharpened Image: 4 ms | 20 ms | 75 ms Cropped Image: 4 ms | 20 ms | 75 ms Magnified Image: 4 ms | 20 ms | 75 ms Colorized Image: None Annotated Image: None MVIC Image(s): Jupiter-shine | Jupiter-shine combined with LORRI Celestia Preview: w/o grid | w/ grid | |

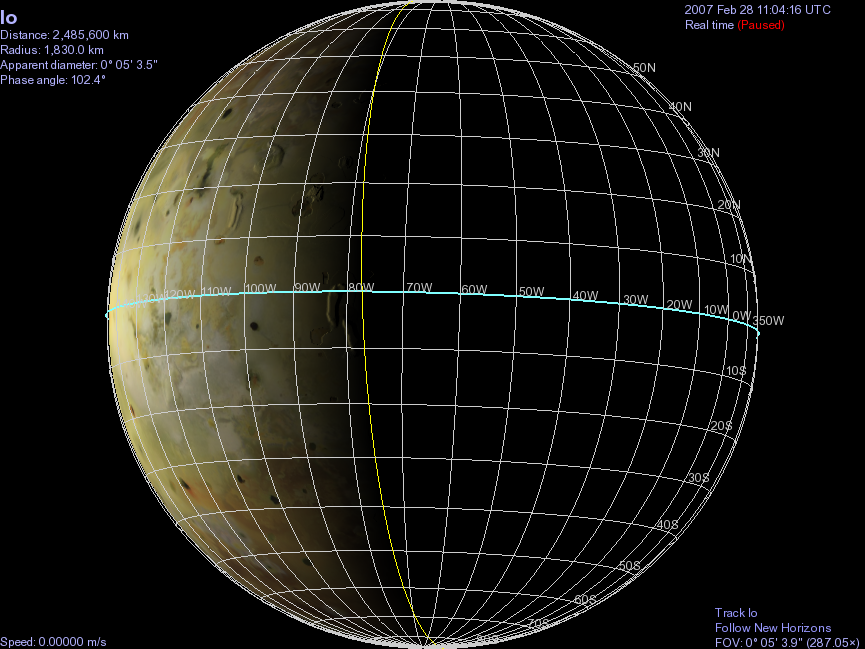

IHIRES05 Image Time: 2007-02-28 11:04:16.366 Distance to Io's Center: 2,485,820 km Resolution: 12.30 km/pixel Center Latitude: 5.6 South Center Longitude: 64.62 West Phase Angle: 102.4 deg. |
Original Image: 4 ms | 20 ms | 75 ms Rotated Image: 4 ms | 20 ms | 75 ms Rotated/Sharpened Image: 4 ms | 20 ms | 75 ms Cropped Image: 4 ms | 20 ms | 75 ms Magnified Image: 4 ms | 20 ms | 75 ms Colorized Image: None Annotated Image: Ihires5_Mountains | Ihires5_Shango | Ihires5-0405Alabeled MVIC Image(s): Sunlit 2-color | Sunlit 2-color combined with LORRI image | Jupiter-shine | Jupiter-shine combined with LORRI image Celestia Preview: w/o grid | w/ grid | |
ISHINE01 Image Time: 2007-02-28 13:14:16.366 Distance to Io's Center: 2,416,620 km Resolution: 11.96 km/pixel Center Latitude: 5.45 South Center Longitude: 78.36 West Phase Angle: 107 deg. |
Original Image: 4 ms | 20 ms | 75 ms Rotated Image: 4 ms | 20 ms | 75 ms Rotated/Sharpened Image: 4 ms | 20 ms | 75 ms Cropped Image: 4 ms | 20 ms | 75 ms Magnified Image: 4 ms | 20 ms | 75 ms Colorized Image: None Annotated Image: None MVIC Image(s): Sunlit 2-color 2x | Sunlit 2-color combined with LORRI image | Jupiter-shine | Jupiter-shine combined with LORRI image Celestia Preview: w/o grid | w/ grid | |
IHIRES06 Image Time: 2007-02-28 15:15:01.359 Distance to Io's Center: 2,355,148 km Resolution: 11.66 km/pixel Center Latitude: 5.3 South Center Longitude: 91.8 West Phase Angle: 110.6 deg. |
Original Image: 19 ms | 20 ms | 75 ms Rotated Image: 19 ms | 20 ms | 75 ms Rotated/Sharpened Image: 19 ms | 20 ms | 75 ms Cropped Image: 19 ms | 20 ms | 75 ms Magnified Image: 19 ms | 20 ms | 75 ms Colorized Image: None Annotated Image: None MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |
IHIRESIR04 Image Time: 2007-03-01 00:35:16.367 Distance to Io's Center: 2,264,102 km Resolution: 11.21 km/pixel Center Latitude: 4.05 South Center Longitude: 163.71 West Phase Angle: 117.9 deg. |
Original Image: 4 ms | 20 ms | 75 ms Rotated Image: 4 ms | 20 ms | 75 ms Rotated/Sharpened Image: 4 ms | 20 ms | 75 ms Cropped Image: 4 ms | 20 ms | 75 ms Magnified Image: 4 ms | 20 ms | 75 ms Colorized Image: None Annotated Image: None MVIC Image(s): Sunlit 2-color | Sunlit 2-color 2x | Sunlit 2-color combined with LORRI image Celestia Preview: w/o grid | w/ grid | |
INITEMON01 Image Time: 2007-03-01 02:28:31.358 Distance to Io's Center: 2,318,907 km Resolution: 11.48 km/pixel Center Latitude: 3.66 South Center Longitude: 179.61 West Phase Angle: 118 deg. |
Original Image: 22 ms | 20 ms | 75 ms Rotated Image: 22 ms | 20 ms | 75 ms Rotated/Sharpened Image: 22 ms | 20 ms | 75 ms Cropped Image: 22 ms | 20 ms | 75 ms Magnified Image: 22 ms | 20 ms | 75 ms Colorized Image: None Annotated Image: None MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |
INITEMON02 Image Time: 2007-03-01 04:26:16.367 Distance to Io's Center: 2,409,777 km Resolution: 11.93 km/pixel Center Latitude: 3.22 South Center Longitude: 196.16 West Phase Angle: 118.2 deg. |
Original Image: 4 ms | 20 ms | 75 ms Rotated Image: 4 ms | 20 ms | 75 ms Rotated/Sharpened Image: 4 ms | 20 ms | 75 ms Cropped Image: 4 ms | 20 ms | 75 ms Magnified Image: 4 ms | 20 ms | 75 ms Colorized Image: None Annotated Image: None MVIC Image(s): Sunlit 2-color | Sunlit 2-color 2x | Sunlit 2-color combined with LORRI image Celestia Preview: w/o grid | w/ grid | |

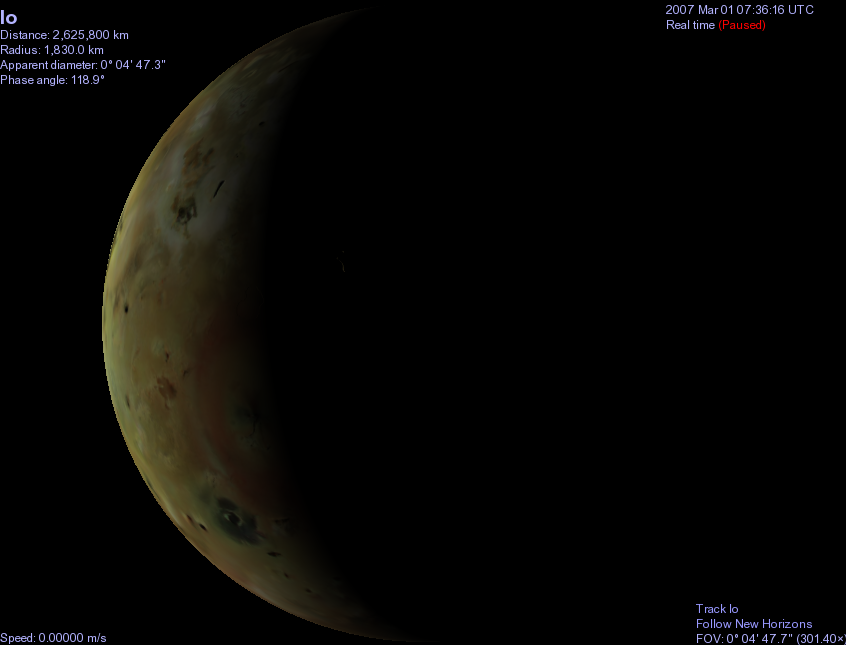

INITEMON03 Image Time: 2007-03-01 07:36:16.367 Distance to Io's Center: 2,625,483 km Resolution: 13.00 km/pixel Center Latitude: 2.52 South Center Longitude: 222.37 West Phase Angle: 118.8 deg. |
Original Image: 4 ms | 20 ms | 75 ms Rotated Image: 4 ms | 20 ms | 75 ms Rotated/Sharpened Image: 4 ms | 20 ms | 75 ms Cropped Image: 4 ms | 20 ms | 75 ms Magnified Image: 4 ms | 20 ms | 75 ms Colorized Image: None Annotated Image: None MVIC Image(s): Sunlit 2-color | Sunlit 2-color 2x | Sunlit 2-color combined with LORRI image Celestia Preview: w/o grid | w/ grid | |
IECLIPSE04 Image Time: 2007-03-01 09:35:04.385 Distance to Io's Center: 2,796,697 km Resolution: 55.37 km/pixel Center Latitude: 2.11 South Center Longitude: 238.22 West Phase Angle: N/A |
Original Image: 7967 ms Rotated Image: 7967 ms Rotated/Sharpened Image: None Cropped Image: None Magnified Image: 7967 ms Colorized Image: None Annotated Image: None MVIC Image(s): None Celestia Preview: None | |
INITEMON04 Image Time: 2007-03-01 18:00:01.355 Distance to Io's Center: 3,656,936 km Resolution: 18.10 km/pixel Center Latitude: 0.77 South Center Longitude: 300.86 West Phase Angle: 128.5 deg. |
Original Image: 28 ms | 20 ms | 75 ms Rotated Image: 28 ms | 20 ms | 75 ms Rotated/Sharpened Image: 28 ms | 20 ms | 75 ms Cropped Image: 28 ms | 20 ms | 75 ms Magnified Image: 28 ms | 20 ms | 75 ms Colorized Image: None Annotated Image: None MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |

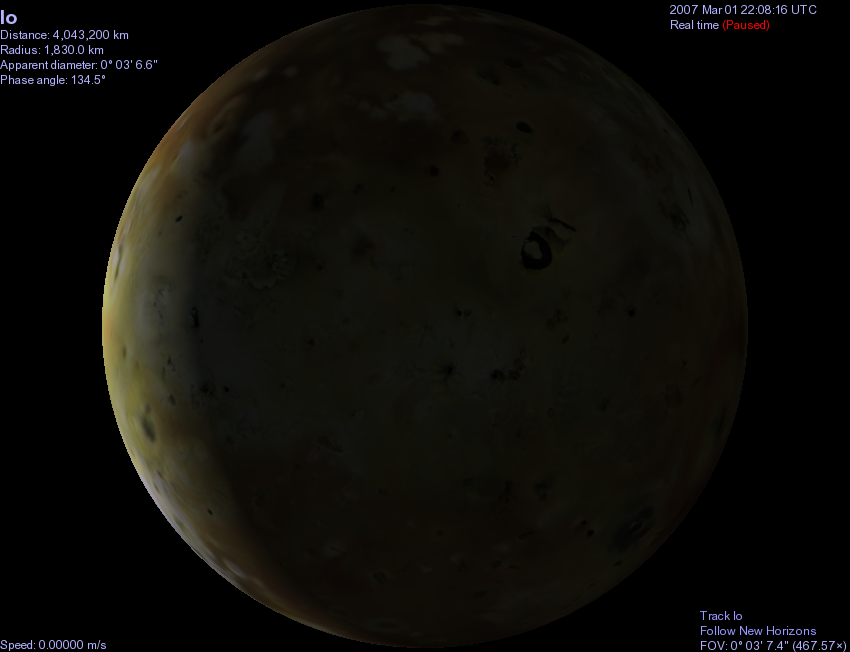

ISHINE02 Image Time: 2007-03-01 22:08:19.359 Distance to Io's Center: 4,042,624 km Resolution: 20.01 km/pixel Center Latitude: 0.33 South Center Longitude: 329.98 West Phase Angle: 134.5 deg. |
Original Image: 20 ms | 75 ms Rotated Image: 20 ms | 75 ms Rotated/Sharpened Image: 20 ms | 75 ms Cropped Image: 20 ms | 75 ms Magnified Image: 20 ms | 75 ms Colorized Image: None Annotated Image: None MVIC Image(s): Sunlit | Sunlit 2x | Sunlit combined with LORRI image | Jupiter-shine | Jupiter-shine combined with LORRI image Celestia Preview: w/o grid | w/ grid | |

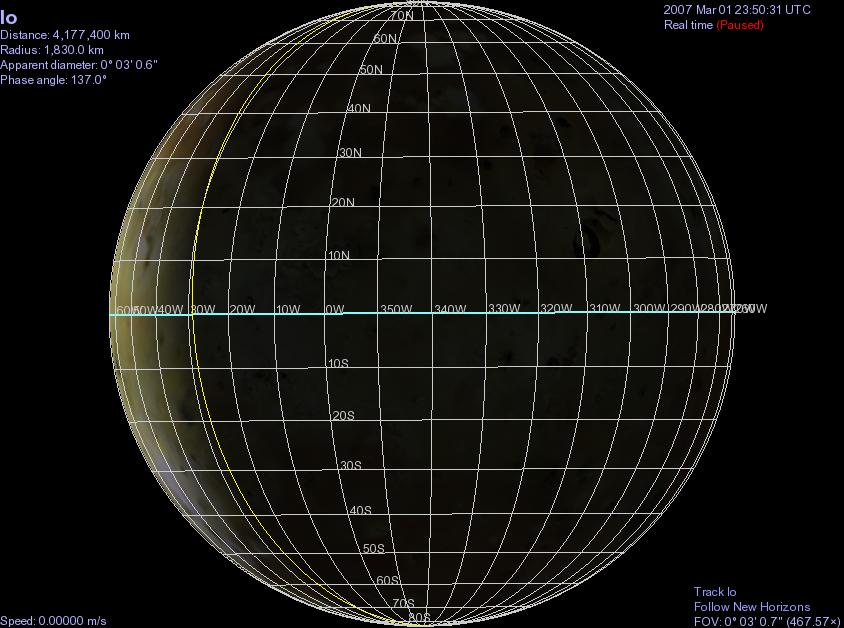

RPCROSS3 Image Time: 2007-03-01 23:50:01.869 Distance to Io's Center: 4,180,161 km Resolution: 20.69 km/pixel Center Latitude: 0.17 South Center Longitude: 342.15 West Phase Angle: 138.2 deg. |
Original Image: 1000 ms | 100 ms | 100 ms | 100 ms | 1000 ms Rotated Image: 1000 ms | 100 ms | 100 ms | 100 ms | 1000 ms Rotated/Sharpened Image: 1000 ms | 100 ms | 100 ms | 100 ms | 1000 ms Cropped Image: 1000 ms | 100 ms | 100 ms | 100 ms | 1000 ms Magnified Image: 1000 ms | 100 ms | 100 ms | 100 ms | 1000 ms Colorized Image: None Annotated Image: RPCROSS3_0035116949_labeled MVIC Image(s): None Celestia Preview: 1 - w/o grid | w/ grid || 2 - w/o grid | w/ grid || 3 - w/o grid | w/ grid || 4 - w/o grid | w/ grid | |
INITEMON05 Image Time: 2007-03-02 06:07:19.359 Distance to Io's Center: 4,511,160 km Resolution: 22.33 km/pixel Center Latitude: 0.35 North Center Longitude: 26.54 West Phase Angle: 145.6 deg. |
Original Image: 20 ms | 75 ms Rotated Image: 20 ms | 75 ms Rotated/Sharpened Image: 20 ms | 75 ms Cropped Image: 20 ms | 75 ms Magnified Image: 20 ms | 75 ms Colorized Image: None Annotated Image: None MVIC Image(s): Sunlit | Sunlit 2x | Sunlit combined with LORRI image | Jupiter-shine | Jupiter-shine combined with LORRI image Celestia Preview: w/o grid | w/ grid | |
INITEMON06 Image Time: 2007-03-02 08:20:01.335 Distance to Io's Center: 4,568,541 km Resolution: 22.61 km/pixel Center Latitude: 0.52 North Center Longitude: 42.8 West Phase Angle: 148.1 deg. |
Original Image: 68 ms | 20 ms | 75 ms Rotated Image: 68 ms | 20 ms | 75 ms Rotated/Sharpened Image: 68 ms | 20 ms | 75 ms Cropped Image: 68 ms | 20 ms | 75 ms Magnified Image: 68 ms | 20 ms | 75 ms Colorized Image: None Annotated Image: None MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |
IKODAK01 Image Time: 2007-03-02 10:23:31.328 Distance to Io's Center: 4,598,549 km Resolution: 22.76 km/pixel Center Latitude: 0.68 North Center Longitude: 58.31 West Phase Angle: 150.1 deg. |
Original Image: 82 ms | 20 ms Rotated Image: 82 ms | 20 ms Rotated/Sharpened Image: 82 ms | 20 ms Cropped Image: 82 ms | 20 ms Magnified Image: 82 ms | 20 ms Colorized Image: None Annotated Image: None MVIC Image(s): Sunlit | Sunlit 2x | Sunlit combined with LORRI image Celestia Preview: 1 - w/o grid | w/ grid || 2 - w/o grid | w/ grid | |
INITEMON07 Image Time: 2007-03-02 11:18:01.329 Distance to Io's Center: 4,606,102 km Resolution: 22.80 km/pixel Center Latitude: 0.76 North Center Longitude: 65.29 West Phase Angle: 150.8 deg. |
Original Image: 79 ms | 20 ms | 75 ms Rotated Image: 79 ms | 20 ms | 75 ms Rotated/Sharpened Image: 79 ms | 20 ms | 75 ms Cropped Image: 79 ms | 20 ms | 75 ms Magnified Image: 79 ms | 20 ms | 75 ms Colorized Image: None Annotated Image: None MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |
INITEMON08 Image Time: 2007-03-02 14:00:01.334 Distance to Io's Center: 4,615,849 km Resolution: 22.85 km/pixel Center Latitude: 0.97 North Center Longitude: 86.55 West Phase Angle: 152.4 deg. |
Original Image: 70 ms | 20 ms | 75 ms Rotated Image: 70 ms | 20 ms | 75 ms Rotated/Sharpened Image: 70 ms | 20 ms | 75 ms Cropped Image: 70 ms | 20 ms | 75 ms Magnified Image: 70 ms | 20 ms | 75 ms Colorized Image: None Annotated Image: None MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |

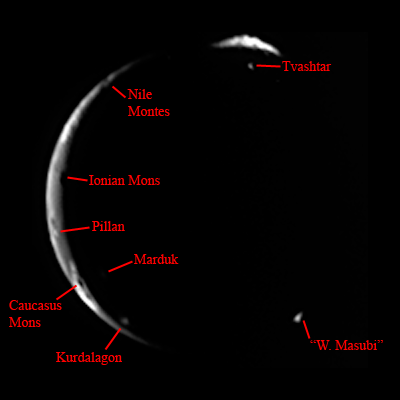

INITEMON09 Image Time: 2007-03-02 23:50:24.332 Distance to Io's Center: 4,796,171 km Resolution: 23.74 km/pixel Center Latitude: 1.68 North Center Longitude: 170.29 West Phase Angle: 152.1 deg. |
Original Image: 75 ms Rotated Image: 75 ms Rotated/Sharpened Image: 75 ms Cropped Image: 75 ms Magnified Image: 75 ms Colorized Image: None Annotated Image: Initemon9-labeled MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |
IECLIPSE05 Image Time: 2007-03-03 06:11:01.319 Distance to Io's Center: 5,306,282 km Resolution: 26.27 km/pixel Center Latitude: 1.95 North Center Longitude: 225.8 West Phase Angle: 150.4 deg. |
Original Image: 100 ms Rotated Image: 100 ms Rotated/Sharpened Image: 100 ms Cropped Image: 100 ms Magnified Image: 100 ms Colorized Image: None Annotated Image: None MVIC Image(s): Sunlit 2x | Sunlit combined with LORRI image Celestia Preview: w/o grid | w/ grid | |
INITEMON11 Image Time: 2007-03-03 08:15:01.349 Distance to Io's Center: 5,537,967 km Resolution: 27.41 km/pixel Center Latitude: 2.01 North Center Longitude: 243.37 West Phase Angle: 150.3 deg. |
Original Image: 40 ms | 75 ms Rotated Image: 40 ms | 75 ms Rotated/Sharpened Image: 40 ms | 75 ms Cropped Image: 40 ms | 75 ms Magnified Image: 40 ms | 75 ms Colorized Image: None Annotated Image: None MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |

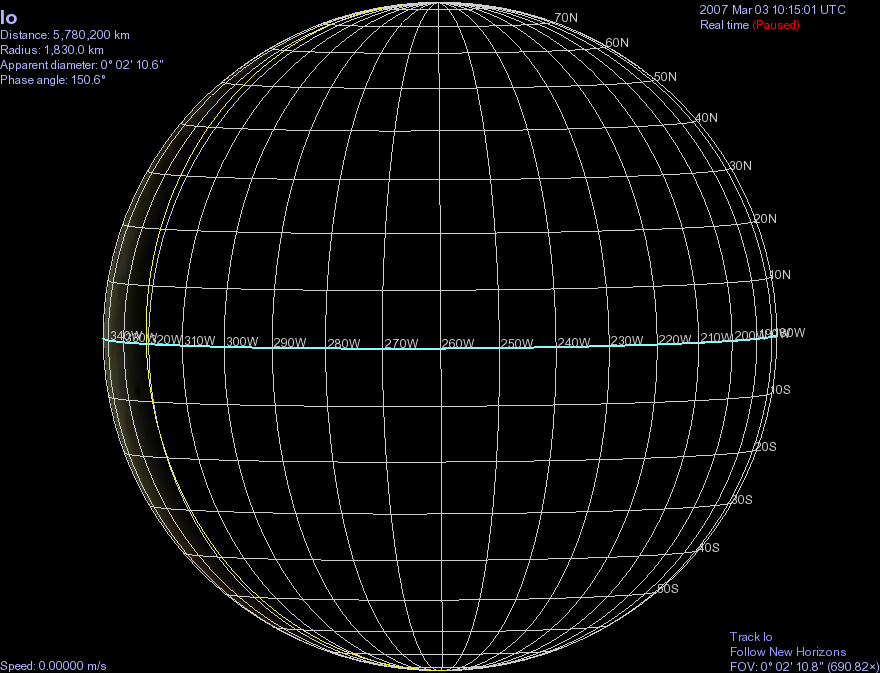

INITEMON12 Image Time: 2007-03-03 10:15:01.323 Distance to Io's Center: 5,779,200 km Resolution: 28.61 km/pixel Center Latitude: 2.05 North Center Longitude: 260.03 West Phase Angle: 150.6 deg. |
Original Image: 93 ms | 75 ms Rotated Image: 93 ms | 75 ms Rotated/Sharpened Image: 93 ms | 75 ms Cropped Image: 93 ms | 75 ms Magnified Image: 93 ms | 75 ms Colorized Image: None Annotated Image: None MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |
INITEMON13 Image Time: 2007-03-03 12:25:01.324 Distance to Io's Center: 6,047,847 km Resolution: 29.94 km/pixel Center Latitude: 2.09 North Center Longitude: 277.72 West Phase Angle: 151.3 deg. |
Original Image: 91 ms | 75 ms Rotated Image: 91 ms | 75 ms Rotated/Sharpened Image: 91 ms | 75 ms Cropped Image: 91 ms | 75 ms Magnified Image: 91 ms | 75 ms Colorized Image: None Annotated Image: None MVIC Image(s): None Celestia Preview: w/o grid | w/ grid | |
INITEMON14 Image Time: 2007-03-04 00:20:01.369 Distance to Io's Center: 7,190,067 km Resolution: 35.59 km/pixel Center Latitude: 2.36 North Center Longitude: 11.16 West Phase Angle: 158.8 deg. |
Original Image: 1 ms | 20 ms | 75 ms Rotated Image: 1 ms | 20 ms | 75 ms Rotated/Sharpened Image: 20 ms | 75 ms Cropped Image: 20 ms | 75 ms Magnified Image: 20 ms | 75 ms Colorized Image: 1 ms Annotated Image: None MVIC Image(s): None Celestia Preview: w/o grid | w/ grid |
© 2008 Jason Perry
Image Credit: NASA/APL/SwRI/University of Arizona/Jason Perry
